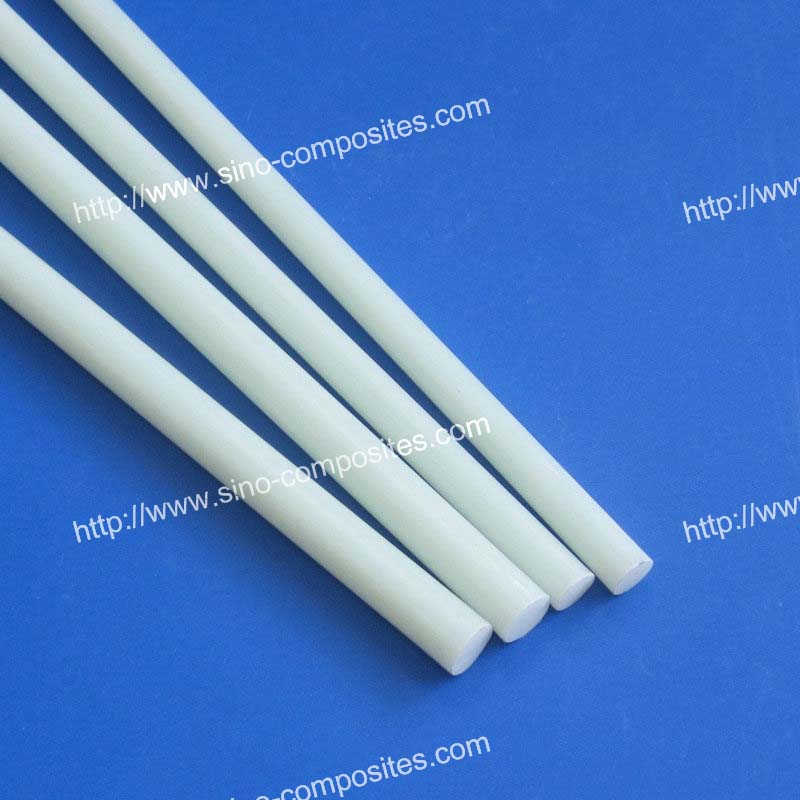

Fiberglass Rod - FRP ROD-01

Fiberglass Rod

Fiberglass Rod
Inquire Now
Item : FRP ROD-01
Details :

We can offer series of fiberglass rods/tubes( outer dia. from 1.0mm to 80 mm), square tubes, rectangular tubes, FRP profiles ,etc. Our Fiberglass Reinforced Plastic (FRP) rod are strong, light, flexible, colorful etc.Our regular colors include black, gray, red, orange, yellow, white, green, blue, etc. we can offer any color according to customers' request. Unit length is also on your request, it could be from several millimeters to more than 30 kilometers (for small Dia rods )

All Pultruded Fiberglass Composite Profiles of ours have a surface veil and UV inhibitor to protect against glass fibers from penetrating the resin surface in service and to increase corrosion and UV resistance. These profiles are non-magnetic and show good electrical and thermal insulation properties which is transparent to radio waves . It is pound that our FRP profiles are stronger than aluminum in the lengthwise direction of the profile.

 Our products are suitable for Tent , kites, toys, model planes,window shade,antennas, tool handle, golfbags, other sports apparatuses play a supporting role.

Product Feature:

 Light Weight ,High Strength
 High Corrosion Resistance
 UV Resistant Inhibited
 Variety Of Colors For Choice
 Wide Temperature Range Use
 Consistent Cross Section
 Environmentally Safe
 Non-Conductive Thermally And Electrically
 Non-Magnetic Electromagnetic
 Ease Of Fabrication & Installation



Fiberglass Round Solid Rod
ITEM OD
m/m
Length
m/m
Weight
gram/Meter
SC-FR-01 1.0  1000 1.5
SC-FR-02 1.3  1000 2.5
SC-FR-03 1.5  1000 3.4
SC-FR-04 1.8  1000 4.9
SC-FR-05 2.0  1000 6.0
SC-FR-06 2.5  1000 9.4
SC-FR-07 2.8  1000 11.8
SC-FR-08 3.0  1000 13.5
SC-FR-09 3.2  1000 15.4
SC-FR-10 3.5  1000 18.4
SC-FR-11 4.0  1000 24.0
SC-FR-12 4.2  1000 26.5
SC-FR-13 4.5  1000 30.4
SC-FR-14 4.8  1000 34.6
SC-FR-15 5.0  1000 37.5
SC-FR-16 5.5  1000 45.4
SC-FR-17 6.0  1000 54.0
SC-FR-18 6.3  1000 59.5
SC-FR-19 6.5  1000 63.4
SC-FR-20 7.0  1000 73.5
SC-FR-21 7.5  1000 84.4
SC-FR-22 7.9  1000 93.6
SC-FR-23 8.0  1000 96.0
SC-FR-24 8.5  1000 108.4
SC-FR-25 8.8  1000 116.2
SC-FR-26 9.0  1000 121.5
SC-FR-27 9.5  1000 135.4
SC-FR-28 10.0  1000 150.0
SC-FR-29 10.5  1000 165.4
SC-FR-30 11.0  1000 181.5
SC-FR-31 12.0  1000 216.0
SC-FR-32 12.5  1000 234.4
SC-FR-33 12.7  1000 241.9
SC-FR-34 14.0  1000 294.0
SC-FR-35 15.0  1000 337.5
SC-FR-36 16.0  1000 384.0
SC-FR-37 18.0  1000 486.0
SC-FR-38 20.0  1000 600.0
SC-FR-39 22.0  1000 726.0
SC-FR-40 22.2  1000 740.6
SC-FR-41 25.4  1000 967.7
SC-FR-42 30.0  1000 1350.0
SC-FR-43 37.0  1000 2053.5
SC-FR-44 44.0  1000 2904.0
SC-FR-45 51.0  1000 3901.5
SC-FR-46 58.0  1000 5046.0
