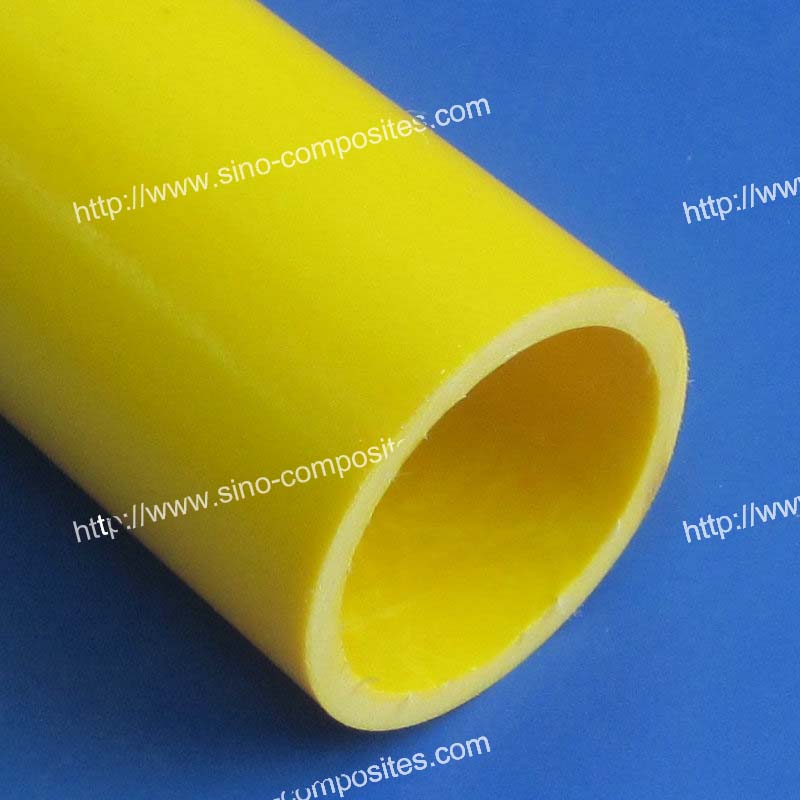

Fiberglass Tube - F.R.P TUBE-03

Fiberglass Tube

Fiberglass Tube
Inquire Now
Item : F.R.P TUBE-03
Details :

We can offer series of fiberglass rods/tubes( outer dia. from 1.0mm to 80 mm), square tubes, rectangular tubes, FRP profiles ,etc. Our Fiberglass Reinforced Plastic (FRP) rod are strong, light, flexible, colorful etc.Our regular colors include black, gray, red, orange, yellow, white, green, blue, etc. we can offer any color according to customers' request. Unit length is also on your request, it could be from several millimeters to more than 30 kilometers (for small Dia rods )

All Pultruded Fiberglass Composite Profiles of ours have a surface veil and UV inhibitor to protect against glass fibers from penetrating the resin surface in service and to increase corrosion and UV resistance. These profiles are non-magnetic and show good electrical and thermal insulation properties which is transparent to radio waves . It is pound that our FRP profiles are stronger than aluminum in the lengthwise direction of the profile.

 Our products are suitable for Tent , kites, toys, model planes,window shade,antennas, tool handle, golfbags, other sports apparatuses play a supporting role.

Product Feature:
 Light Weight ,High Strength
 High Corrosion Resistance
 UV Resistant Inhibited
 Variety Of Colors For Choice
 Wide Temperature Range Use
 Consistent Cross Section
 Environmentally Safe
 Non-Conductive Thermally And Electrically
 Non-Magnetic Electromagnetic
 Ease Of Fabrication & Installation



Fiberglass Round Tube
ITEM OD
m/m
ID
m/m
Length
m/m
Weight
gram/Meter
SC-FT-01 3.0  1.5  1000 10.1
SC-FT-02 3.0  2.0  1000 7.5
SC-FT-03 4.0  2.0  1000 18.0
SC-FT-04 4.0  2.5  1000 14.6
SC-FT-05 5.0  2.0  1000 31.5
SC-FT-06 5.0  2.5  1000 28.1
SC-FT-07 5.0  3.0  1000 24.0
SC-FT-08 5.0  3.5  1000 19.1
SC-FT-09 5.5  2.5  1000 36.0
SC-FT-10 6.0  3.0  1000 40.5
SC-FT-11 6.0  4.0  1000 30.0
SC-FT-12 6.3  4.0  1000 35.5
SC-FT-13 6.5  4.0  1000 39.4
SC-FT-14 7.0  3.4  1000 56.2
SC-FT-15 7.0  5.0  1000 36.0
SC-FT-16 7.5  5.0  1000 46.9
SC-FT-17 7.8  4.0  1000 67.3
SC-FT-18 8.0  4.0  1000 72.0
SC-FT-19 8.0  5.0  1000 58.5
SC-FT-20 8.0  6.0  1000 42.0
SC-FT-21 8.5  5.0  1000 70.9
SC-FT-22 9.0  6.5  1000 58.1
SC-FT-23 9.5  4.2  1000 108.9
SC-FT-24 9.5  6.0  1000 81.4
SC-FT-25 10.0  4.0  1000 126.0
SC-FT-26 10.0  6.0  1000 96.0
SC-FT-27 10.0  8.0  1000 54.0
SC-FT-28 11.0  4.0  1000 157.5
SC-FT-29 11.0  5.0  1000 144.0
SC-FT-30 11.0  6.0  1000 127.5
SC-FT-31 11.0  9.0  1000 60.0
SC-FT-32 12.0  8.0  1000 120.0
SC-FT-33 12.0  10.0  1000 66.0
SC-FT-34 12.5  6.0  1000 180.4
SC-FT-35 12.5  8.0  1000 138.4
SC-FT-36 12.5  10.0  1000 84.4
SC-FT-37 12.7  5.0  1000 204.4
SC-FT-38 12.7  8.0  1000 145.9
SC-FT-39 12.7  10.0  1000 91.9
SC-FT-40 14.0  6.0  1000 240.0
SC-FT-41 14.0  10.0  1000 144.0
SC-FT-42 14.0  12.0  1000 78.0
SC-FT-43 15.0  11.0  1000 156.0
SC-FT-44 16.0  3.0  1000 370.5
SC-FT-45 16.0  12.0  1000 168.0
SC-FT-46 16.0  14.0  1000 90.0
SC-FT-47 20.0  16.0  1000 216.0
SC-FT-48 22.0  16.0  1000 342.0
SC-FT-49 22.0  20.6  1000 89.5
SC-FT-50 22.2  19.1  1000 192.0
SC-FT-51 23.0  18.0  1000 307.5
SC-FT-52 25.4  21.4  1000 280.8
SC-FT-53 27.0  23.5  1000 265.1
SC-FT-54 28.5  25.4  1000 250.6
SC-FT-55 30.0  25.0  1000 412.5
SC-FT-56 30.0  26.0  1000 336.0
SC-FT-57 32.0  28.0  1000 360.0
SC-FT-58 35.0  32.0  1000 301.5
SC-FT-59 37.0  33.0  1000 420.0
SC-FT-60 38.0  32.0  1000 630.0
SC-FT-61 42.0  38.0  1000 480.0
SC-FT-62 44.0  40.0  1000 504.0
SC-FT-63 48.0  34.0  1000 1722.0
SC-FT-64 51.0  47.0  1000 588.0
SC-FT-65 58.0  47.0  1000 1732.5
SC-FT-66 58.0  54.0  1000 672.0
